Thermostatic Mixing Valve

The utility model is applied to electric water heaters, solar water heaters and central heating water systems

Diverting Valve

It is applied to the synchronous control hydraulic system of double cylinder and multi cylinder

Antifreeze Valve

It is used in building, school, kindergarten, nursing home, hospital, fire fighting pipeline system and so on

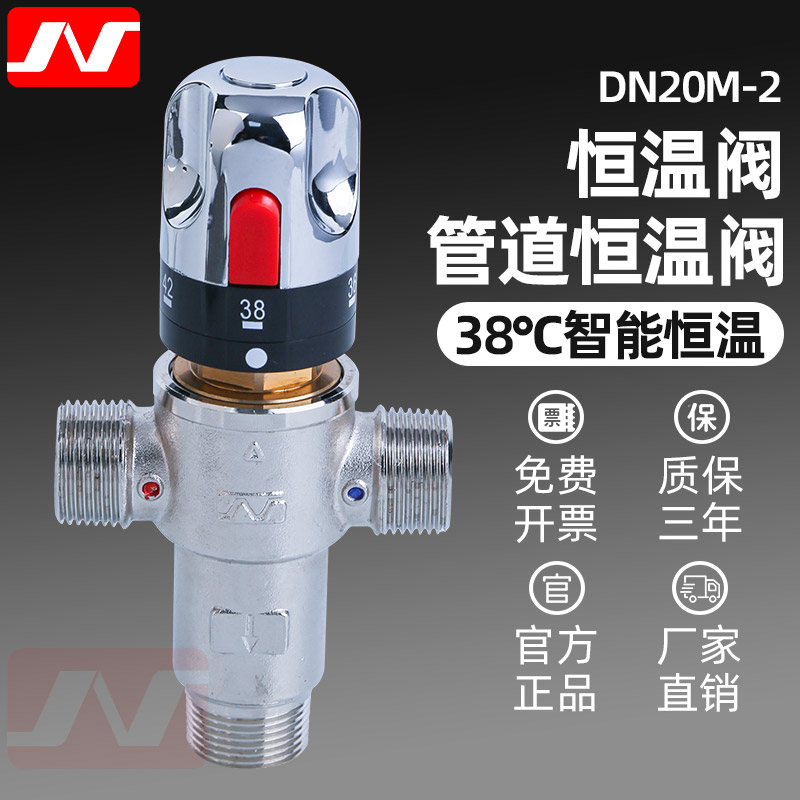

DN20M thermostatic mixing valve

Port size :G3/4” male thread

Body material : brass plated nickel

Flow rate : 26.67L/min

Temp. range : 35-55℃

Ideal working pressure : 0.1-0.5Mpa

DN25 thermostatic mixing valve

Port size :G1” female thread

Body material : brass plated nickel

Flow rate : 38.3L/min

Temp. range : 35-55℃

Ideal working pressure : 0.1-0.5Mpa

DN65 thermostatic mixing valve

Port size :G2-1/2” male thread

Body material : Stainless steel

Flow rate : 415L/min

Temp. range : 35-45℃

Ideal working pressure : 0.1-0.5Mpa

DN80 thermostatic mixing valve

Port size :G3” male thread

Body material : Stainless steel

Flow rate : 833.3L/min

Temp. range : 35-45℃

Ideal working pressure : 0.1-0.5Mpa

DN100 thermostatic mixing valve

Port size :G4” male thread

Body material : Stainless steel

Flow rate : 1666.67L/min

Temp. range : 35-45℃

Ideal working pressure : 0.1-0.5Mpa

DN15G thermostatic mixing valve

Port size :G1/2” male thread

Body material : brass plated nickel

Flow rate : 16.67L/min

Temp. range : 35-45℃

Ideal working pressure : 0.1-0.5Mpa

DN40 thermostatic mixing valve

Port size :G1-1/2” male thread

Body material : brass plated nickel

Flow rate : 133.3L/min

Temp. range : 35-45℃

Ideal working pressure : 0.1-0.5Mpa

DN50 thermostatic mixing valve

Port size :G2” male thread

Body material : Stainless steel

Flow rate : 216.7L/min

Temp. range : 35-45℃

Ideal working pressure : 0.1-0.5Mpa

DN32 thermostatic mixing valve

Port size :G1-1/4” male thread

Body material : brass plated nickel

Flow rate : 66.67L/min

Temp. range : 35-45℃

Ideal working pressure : 0.1-0.5Mpa
